Rear Left Magnetic Shock for 2007-2010 Cadillac STS (GMX295)
Rear Left Magnetic Shock for 2007-2010 Cadillac STS (GMX295)
Rear Left Magnetic Shock for 2007-2010 Cadillac STS (GMX295)
Rear Left Magnetic Shock for 2007-2010 Cadillac STS (GMX295)
Rear Left Magnetic Shock for 2007-2010 Cadillac STS (GMX295)
Rear Left Magnetic Shock for 2007-2010 Cadillac STS (GMX295)
Rear Left Magnetic Shock for 2007-2010 Cadillac STS (GMX295)
Rear Left Magnetic Shock for 2007-2010 Cadillac STS (GMX295)

Rear Left Magnetic Shock for 2007-2010 Cadillac STS (GMX295)

$384.72 In Stock Sold out
CODE: MR-3440
Categories: Cadillac




  • Description
  • Shipping and Refund
  • Warranty
  • Reviews

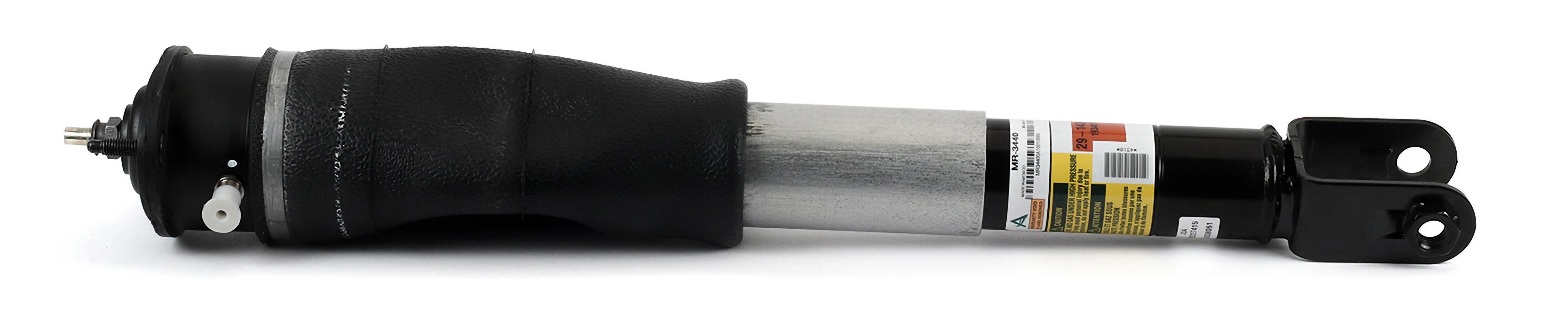

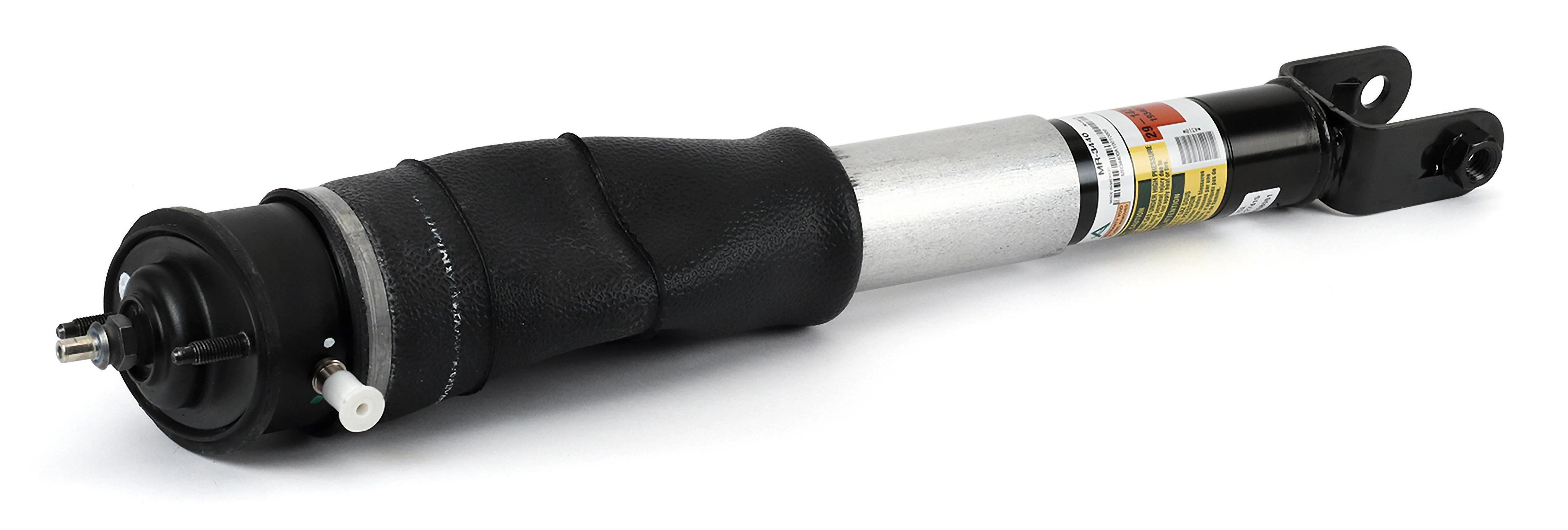

MR-3440 is an OES rear left magnetic ride shock for the 2007-2010 Cadillac STS (GMX295 Platform) with All Wheel Drive (AWD) or Rear Wheel Drive (RWD) equipped with the GM magnetorheological damper system (Z95 RPO). This magnetically controlled shock from Arnott provides the same highly adaptive ride as the OE. The monotube damper is filled with magnetorheological fluid which is a synthetic hydrocarbon oil that contains iron particles that are easily magnetized. The damper includes two electromagnetic coils which, when turned on, instantly change the bonds between the magnetized iron particles to alter the viscosity and stiffness of the suspension.  Arnotts new magnetic ride Cadillac STS rear shock connects to the vehicles ECU with no modifications. WARNING: Cancer and Reproductive Harm.

  • Direct replacement for GM magnetic shock
  • OES design & components
  • Connects to ECU
Adjustable: No
Adjustable Damping: No
Air Adjustable: No
Air Bladder: Yes
Air Bladder Material: Rubber
Air Ride Suspension: Yes
Bearing Plate Included: No
Body End Measuring Point: Center Eye
Body/housing Diameter: N/A
Boot Color: Black
Boot/dust Shield Included: Yes
California Proposition 65: Yes
Coil Over Springs Included: No
Coil Spring Maximum Outside Diameter: N/A
Compressed Length: 438.15
Contents: Magnetic Ride Shock Assembly
Dust Shield Material: Rubber
Extended Length: 565.15
Gas Charged: No
Heavy Duty Crimping Rings: Yes
Internal Construction Type: Monotube
Internal Damper Type: Magnetic
Lower Mount Type: Clevis
Lower Mounting Isolator Included: No
Mounting Hardware Included: No
Progressive Spring Rate: No
Protective Aluminum Can: No
Shock Absorber Rod End Measuring Point: Shoulder of Stud
Shock Spring Assisted: No
Shock/strut Design: Monotube
Spring Isolators Included: No
Spring Rate Type: N/A
Spring Seat Included: No
Springs Included: No
Travel Length: 127
Upper Mount Type: Stud
Upper Mounting Isolator Included: No
